MIllwork Shop Drawings for Retail Locations

Millwork Shop Drawings are an essential part of the Construction Process . Here at Cad-Con Design we work with over 200 Millwork and casework Shops in over 35 states here in the United States. Having said that, you know we deal with many different client needs. Some clients need our help to engineer a system that can become a standard for a project. This Project the Green Monkey Yoga Studio in, Fort Lauderdale, Florida, Built by a Client in Fort Pierce Florida . Was one that needed some standardizing in order to have a smooth build and install.

Millwork Shop Drawings

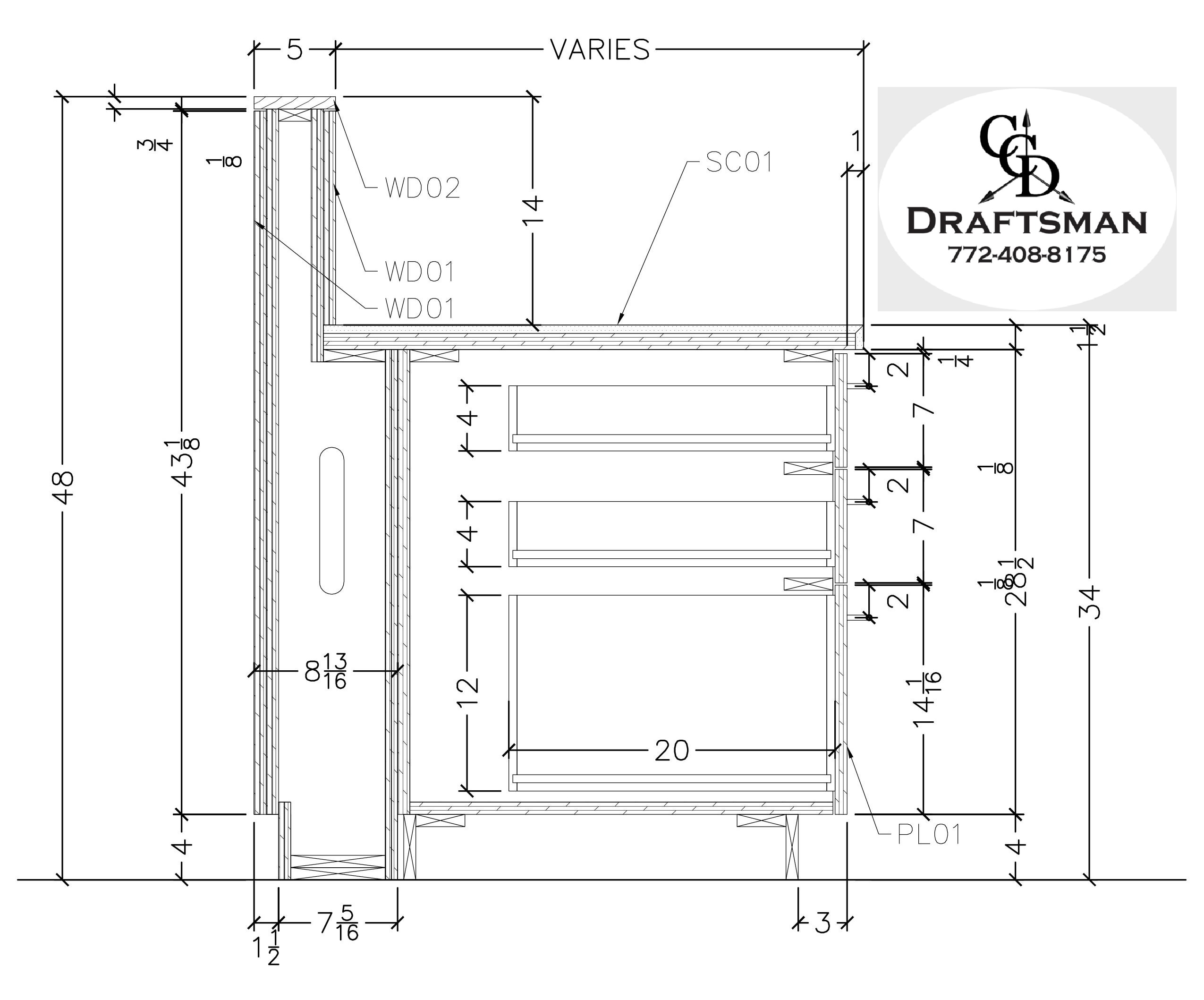

Millwork Shop Drawings plan section








We worked to create millwork shop drawings for a knock down style system, which allowed for a simple standard build and install. The final product was ready to easily load, transport and get into the job site ( as many sites have elevators or openings with size constants). Using our Shop drawings for the install allowed the installers to easily assemble the knock down System quickly with a quality finish.

If you need to get a Quote for Millwork or Casework Shop drawings please call 772-408-8175 or e-mail us

Midwest Call 248-545-6481

You can also Txt us 772-340-6223

Call 772-408-8175

Call 772-408-8175


Millwork Shop Drawings are our Specialty

( Posted By: 772-408-8175 )
Millwork Shop Drawings are our Specialty and We where Recently Asked How do we handle Bad Specs Send out by Architects and designers..
Well the best way is We send an RFI
( Request for Information)
we are in the Millwork Shop Drawing Business which is really the Documentation Business and ultimately like an Insurance business against miscommunication. One thing i have learned in all of my years being in this Industry is Cover your Butt.
Send an RFI stating your case something like Below.
Spec Section 6402 page 2 Item 5 calls for Plain Sliced book matched and Blue print matched Wenge Veneer Panels, Material Specified is not readily available and may cause Production delays.
Please Advise.

Contact Cad-Con Design LLC For your Millwork Shop Drawing Questions. Click here. or Call 772-408-8175


Millwork Shop Drawings

Millwork Shop Drawings are part of the Millwork Submittals Package.
Typicaly the Architect will want the following.

• Submit two copies; one of which will be returned with reviewed notations prior to commencement of work under this section.

• Indicate plans Sections and elevations, materials, surface grain directions, profiles, assembly methods, joint details, fastening methods, accessories, hardware, compliance with specified fire-retardant treatments, preservative treatments, and schedule of finishes.
